Product Description

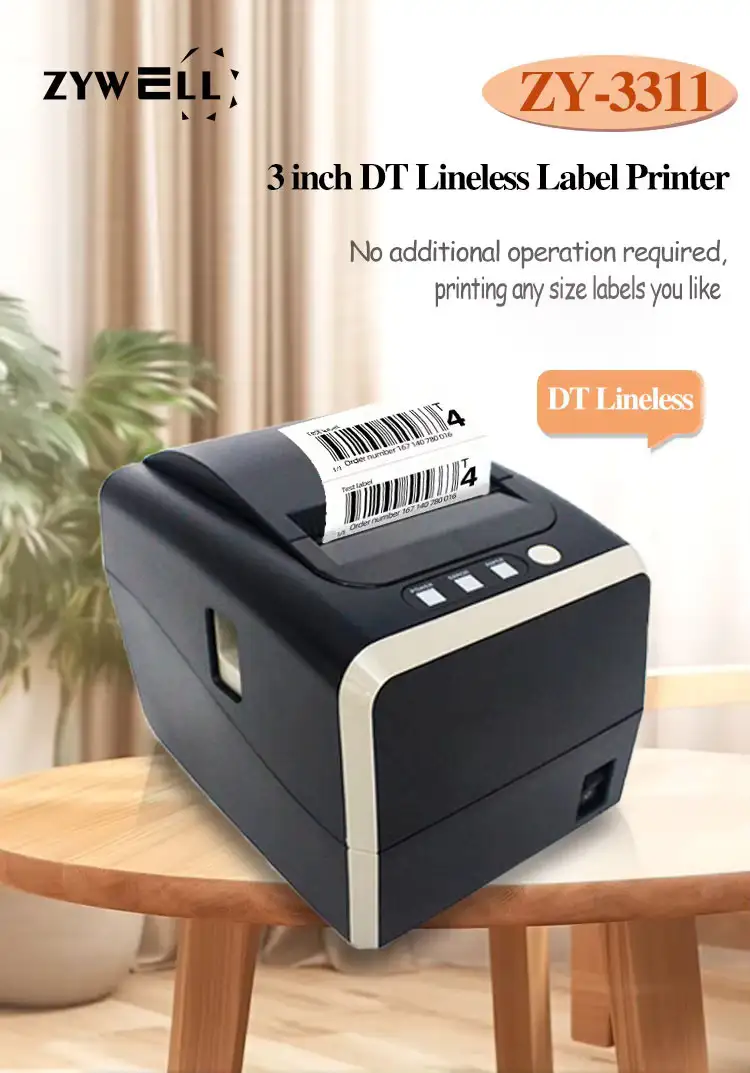

ZY3311 80mmThermal Linerless Printer

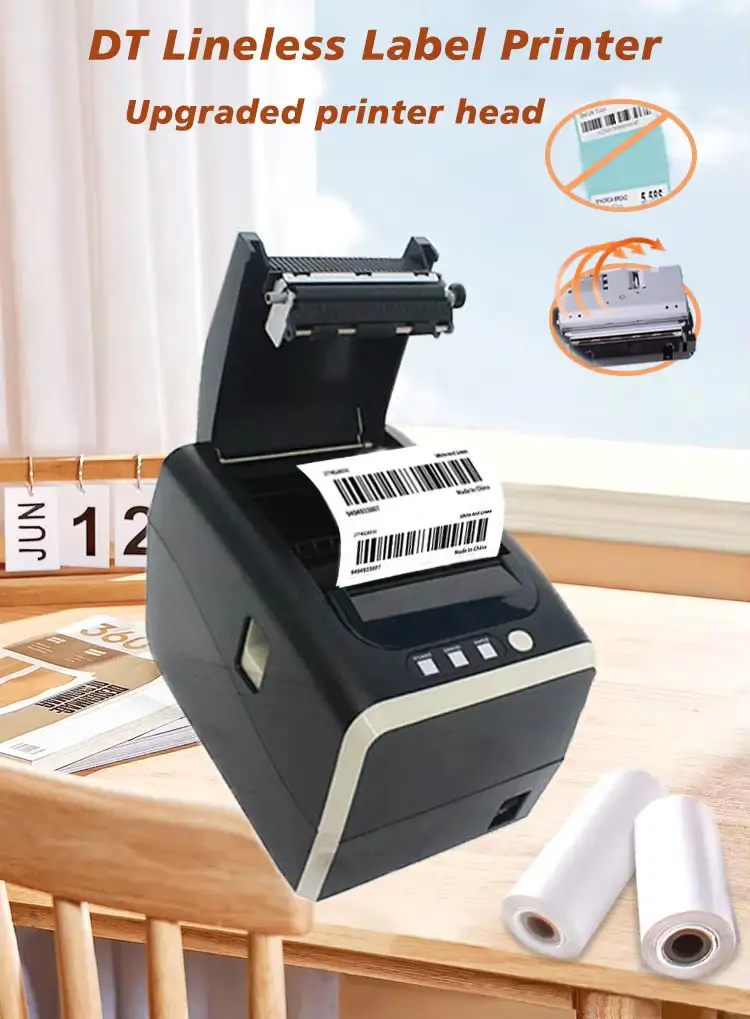

Zy-3311 80mm thermal linerless printer features a sleek and minimalist design with a black matte finish that reduces fingerprint marks. The 90-degree lid opening design makes paper loading easier. It also comes equipped with power, error, and out-of-paper indicator lights for clear operational status. Supporting multiple interfaces such as U+S+L, U+S+L+W, and U+S+L+BT, it offers flexible connectivity options to meet diverse needs.
Model |
|
ZY-3311 |
|||
Printing |
Print Method |
Direct Thermal |
|||
Resolution |
576 dots/line |
||||
Printing Width |
80mm(MAX)/72mm(default) |
||||
Paper separator |
40mm/58mm/80mm |
||||
Memory |
Input buffer 2M NV Flash 4M |
||||
Interface | U+S+L/U+S+L+W/U+S+L+BT | ||||
Print Speed | Max 152mm/s | ||||
Physical Charateristics |
Working Condition |
0°℃~45C.10%~80%RH |
|||
Storage Condition |
-10°C-60°℃,10%~90%RH |
||||
Dimensions | 195(D)x151(W)x145(H)mm | ||||
Net Weight | Net Weight: 1.2kg Gross Weight: 1.8kg | ||||
Reliability | Printing head | 50KM | |||
Cutter | 1.0million | ||||
Physical Properties |
Font A |
12x24 |
|||
Font B |
9x17 |
||||
Chinese |
GB18030, BIG5 24x24dots |
||||
Japanese/Korea |
Optional |
||||
User-defined | Support | ||||
Barcode |
1D |
UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128 |
|||
2D |
QR code,PDF417,Data Matrix |
||||
Operating System |
Emulation |
TSPL、CPCL、ESC/POS |
|||
Driver |
Windows/Linux/Mac |
||||
SDK |
Windows/Android/IOS |
||||
Paper |
Paper Type |
Linerless Paper |
|||
Paper Width |
Max.79.5±0.5mm/57.5±0.5mm |
||||
Paper Thickness |
0.06~0.10mm |
||||
Roll Dia |
Max.080 mm |
||||
Paper Load |
Easy paper loading |
||||
Paper Cut |
Auto-cutter |
||||
Packing |
Input |
AC 100V-240V 50/60HZ |
|||
Output |
DC 24V/2.5A |
Detail
