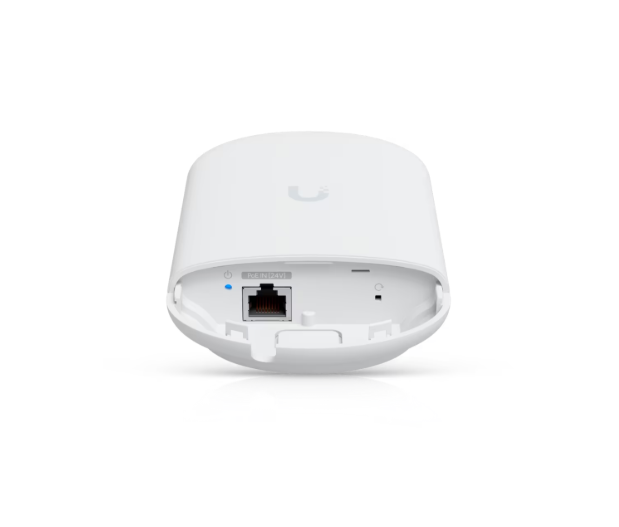

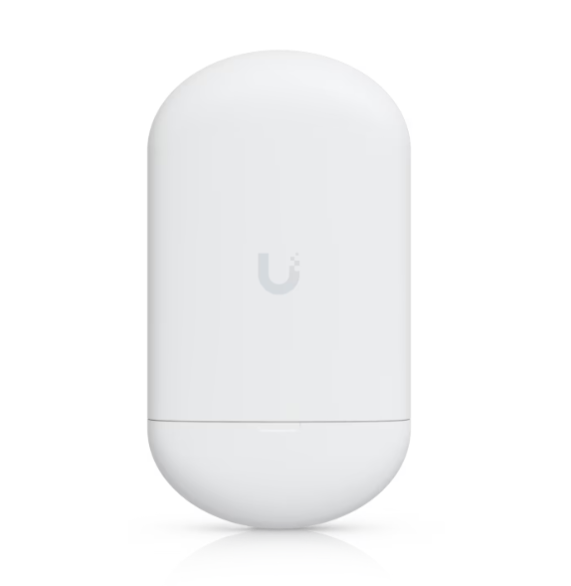

  • Ubiquiti NanoStation 5AC Loco 1000 Mbit/s White Power over Ethernet (PoE) Loco5AC
  • Ubiquiti NanoStation 5AC Loco 1000 Mbit/s White Power over Ethernet (PoE) Loco5AC

    • Ubiquiti NanoStation 5AC Loco 1000 Mbit/s White Power over Ethernet (PoE) Loco5AC

    Log in for pricing

    (No reviews yet) Write a Review
    SKU:
    Loco5AC
    Shipping:
    Calculated at Checkout

    Product Description

    Dimensions
    179 x 77.5 x 59.1 mm (7.1 x 3.1 x 2.3")
    Weight
    180 g (6.4 oz)
    Enclosure Materials
    UV-stabilized polycarbonate
    Mounting
    Pole Mount (Included)

    Networking Interface
    (1) GbE RJ45 port
    Power Method
    Passive PoE 2-pair (4, 5+; 7, 8 return)
    Power Supply
    24V, 0.3A gigabit PoE supply (Not Included)
    Supported Voltage Range
    22–27V DC
    Max. Power Consumption
    7W
    LEDs

    Signal Strength
    ✓
    Power
    ✓
    Ethernet
    ✓
    Ambient Operating Temperature
    -40 to 70° C (-40 to 158° F)
    Ambient Operating Humidity
    5 to 95% noncondensing
    NDAA Compliant
    ✓
    Certifications
    CE, FCC, IC, Anatel: 01405-19-08356

    Operating Modes
    Access Point Station
    Ubiquiti Specific Features

    airMAX AC Mode
    ✓
    Discovery Protocol
    ✓
    Frequency Band Offset
    ✓
    Traffic Shaping with Burst Support
    ✓
    30/50/60 MHz Channels
    ✓
    Services

    Bridging
    ✓
    DHCP
    ✓
    Ping Watchdog
    ✓
    Routing
    ✓
    SNMP
    ✓
    SSH
    ✓
    Webserver
    ✓
    Distance Adjustment

    Ackless Mode
    ✓
    Dynamic Ack
    ✓
    QoS
    WMM packet classification with user-level priority: High, Medium, Low
    Statistical Reporting

    Data Rates
    ✓
    Ethernet Link Rate
    ✓
    Packet Errors
    ✓
    Up Time
    ✓
    Wireless Distance
    ✓

    Channel Bandwidth
    10/20/30/40/50/60/80 MHz
    Antenna Gain
    13 dBi
    Max. VSWR
    1.8:1
    Polarization
    Dual-Linear
    Antenna beamwidth
    45° (H-pol) / 45° (V-pol) / 45° (Elevation)
    Cross-Pol Isolation
    Min. 20 dB

    Supported Frequency Range

    Worldwide
    5150 - 5875 MHz
    US/CA
    U-NII-1: 5150-5250 MHz U-NII-2A: 5250-5350 MHz U-NII-2C:5240-5725 MHz U-NII-3: 5725-5850 MHz

    Supported Frequency Range

    Worldwide
    2412 - 2472 MHz
    US/CA
    2412 - 2462 MHz
