Product Description
| Standards and Protocols |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD |
|---|---|
| Dimensions |
3.92 × 3.86 × 0.99 in |
| Interfaces |
5× 10/100/1000Mbps Ports, Auto-Negotiation, Auto MDI/MDIX |
| External Power Supply |
5V/0.6A |
| Installation |
Desktop Wall Mount |
| Data Rates |
10/100/1000 Mbps at Half Duplex20/200/2000 Mbps at Full Duplex |
| Buffer Capacity |
1 Mbit |
| Jumbo Frame |
9 KB |
| LED |
Ethernet Ports (1, 2, 3, 4, 5), Power |
| Transfer Method |
Store and Forward |
|---|---|
| Management |
Plug and Play |
| Advanced Features |
802.3x Flow Control 802.1P/DSCP QoS IGMP Snooping V1/V2/V3 Green Ethernet |
| Package Contents |

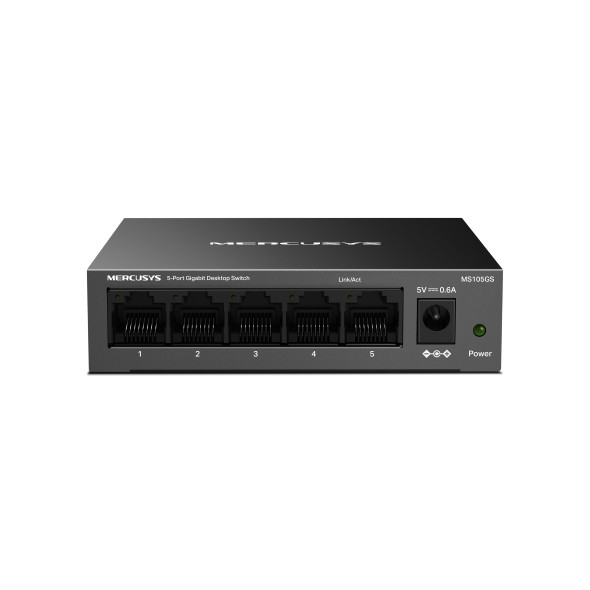

• 5-Port Gigabit Desktop Switch (MS105GS)• Power Adapter• Quick Installation Guide |
|---|---|
| Environment |
0°℃~40°℃ (32°F~104°F)/10% ~ 90% RH, Non-Condensing |
