Product Description
Performance
Switching Capacity
84 Gbps
Total Non-Blocking Throughput
42 Gbps
Forwarding Rate
62 Mpps
Supported VLANs
1,000
MAC Address Table Size
16,000
L3 Table Size
ARP Entries
6,000
IPv4 Routes
512
Packet Buffer Size
1.5 MB
Layer 3 Features
DHCP Server (Local Networks)
Yes
DHCP Relay
Yes
Inter-VLAN Routing (Local Networks)
Yes
Static Routing (Local Networks)
Yes
Layer 2 Features
LACP Port Aggregation
Yes
STP & RSTP
Yes
QoS (DSCP)
Yes
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
Yes
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
Yes
IGMP Snooping
Yes
802.1X Control
Yes
MAC-Based ACLs & Device Isolation
Yes
DHCP Snooping & Guarding
Yes
Egress Rate Limit
Yes
Flow Control
Yes
Storm Control
Yes
Multicast & Broadcast Rate Limiting
Yes
MAC Address Blocking
Yes
IP-Based ACLs & Network Isolation
Yes
MAC-Based Port Restriction
Yes
Port Isolation
Yes
Port Mirroring
Yes
Jumbo Frames
Yes
LLDP-MED
Yes
Voice VLAN
Yes
Loop Protection
Yes
Hardware
PoE Ports
PoE+
12
PoE++
4
Max. PoE Wattage per Port by PSE
PoE
15.4W
PoE+
32W
PoE++
64W
Max. Power Consumption
25W (Excluding PoE Output) 210W (Including PoE Output)
Power Method
AC Adapter
Power Input Method
AC input
Power Supply
AC/DC, external, 210W
Supported Voltage Range
50—54V DC
Management
Ethernet AR
Heat Dissipation (Excluding PoE Output)
102.36 BTU/hr
Weight
2.1 kg (4.6 lb)
Enclosure Material
SGCC steel
Supported Rack Depth
400~1200 mm (15.7-47.2")
LCM Display
1.3" touchscreen
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
Certifications
CE, FCC, IC

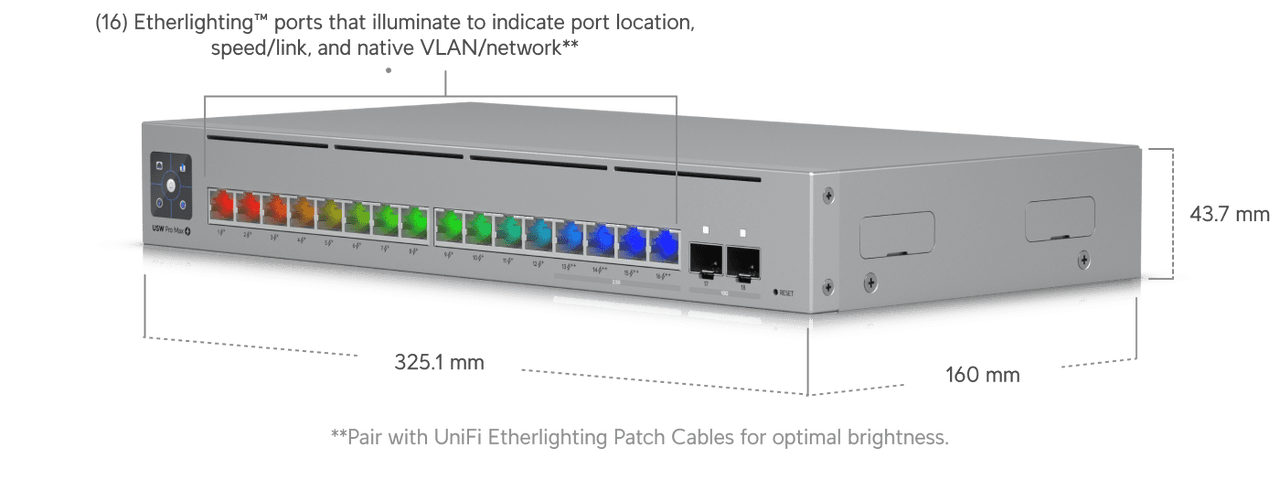

Etherlighting™
Ethernet
Yes
SFP+
Yes
