Product Description
i5-1135G7 11th Gen
number of CPU cores 4
processor threads 8th
Processor Boost Frequency 4.2GHz
processor cache 8MB
Thermal Design Power (TDP) 40W
Memory bandwidth supported by the processor (max). 51.2GB/s
CPU configuration (max) 1
Number of HDMI ports 1
Number of Ethernet LAN ports (RJ-45) 1
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type A ports 3
HDMI version 2.0b
Number of DisplayPort connections 1
Number of Mini DisplayPorts 1
DisplayPorts version 1.4
SATA III connectors 2
Number of USB ports 7
Number of Thunderbolt 3 ports 2
M. 2 card slot (memory) 2280
Intel HD Audio Technology
Intel® Rapid Storage Technology
Intel® AES New Instructions (Intel® AES-NI)
Intel® Virtualization Technology for Direct I/O (VT-d)
Intel® VT-x with Extended Page Tables (EPT)
idle states
Intel® Platform Trust Technology (Intel® PTT)
Intel® Virtualization Technology (VT-X)
memory type SO DIMM
Number of memory slots 2
Number of DIMM slots 2
RAM memory maximum 64GB
Supported memory speed 3200MHz
Supported memory DDR4 SDRAM
memory channels dual channel
Memory bandwidth (max) 51.2GB/s
Removable memory card slot SDXC with UHS-II support
motherboard form factor UCFF
Number of processors supported 1
audio channels 7.1 channels
Consumer Rx Infrared Sensor
Supports Windows operating systems Windows 11 x64, Windows 10 x64
case type UCFF
product color Black

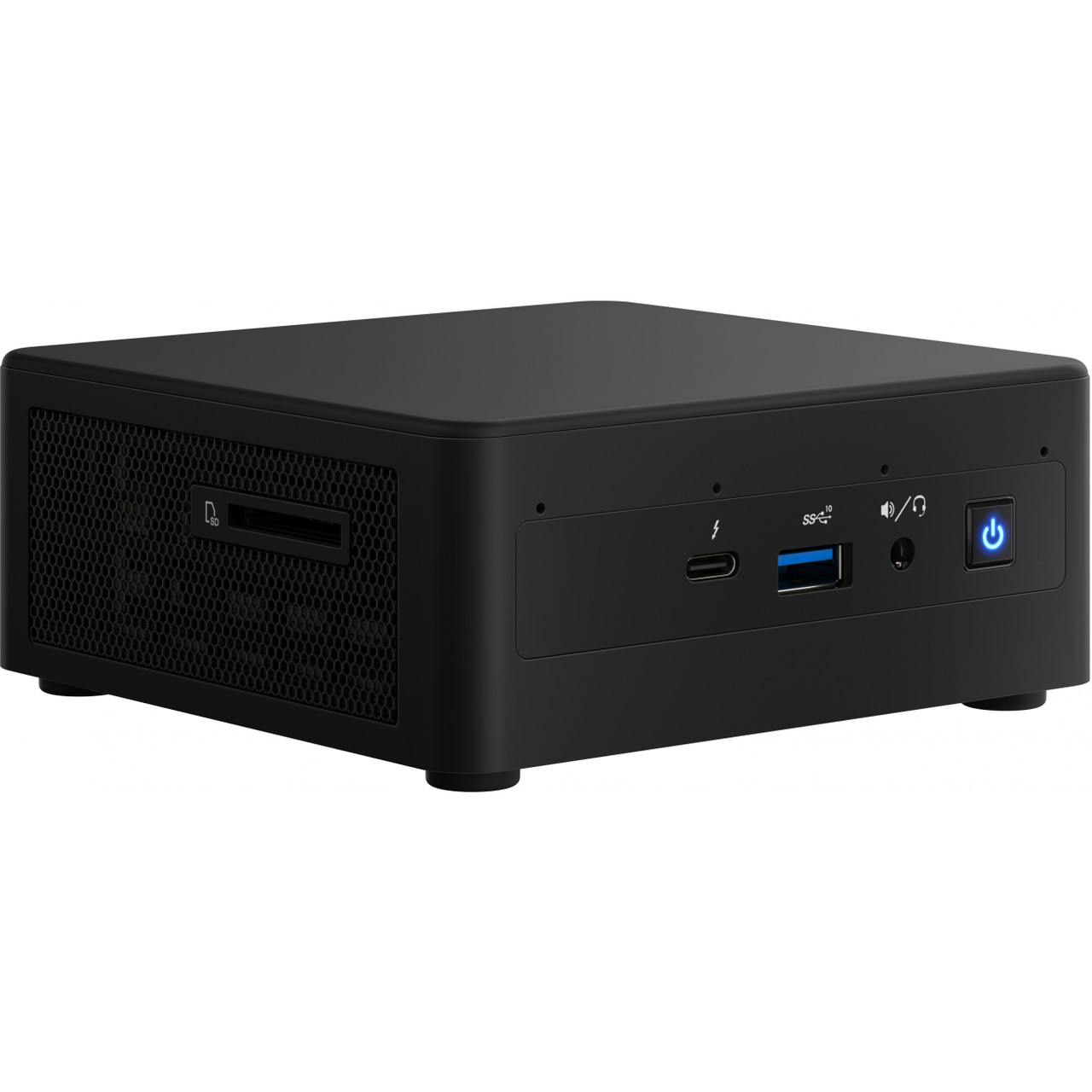

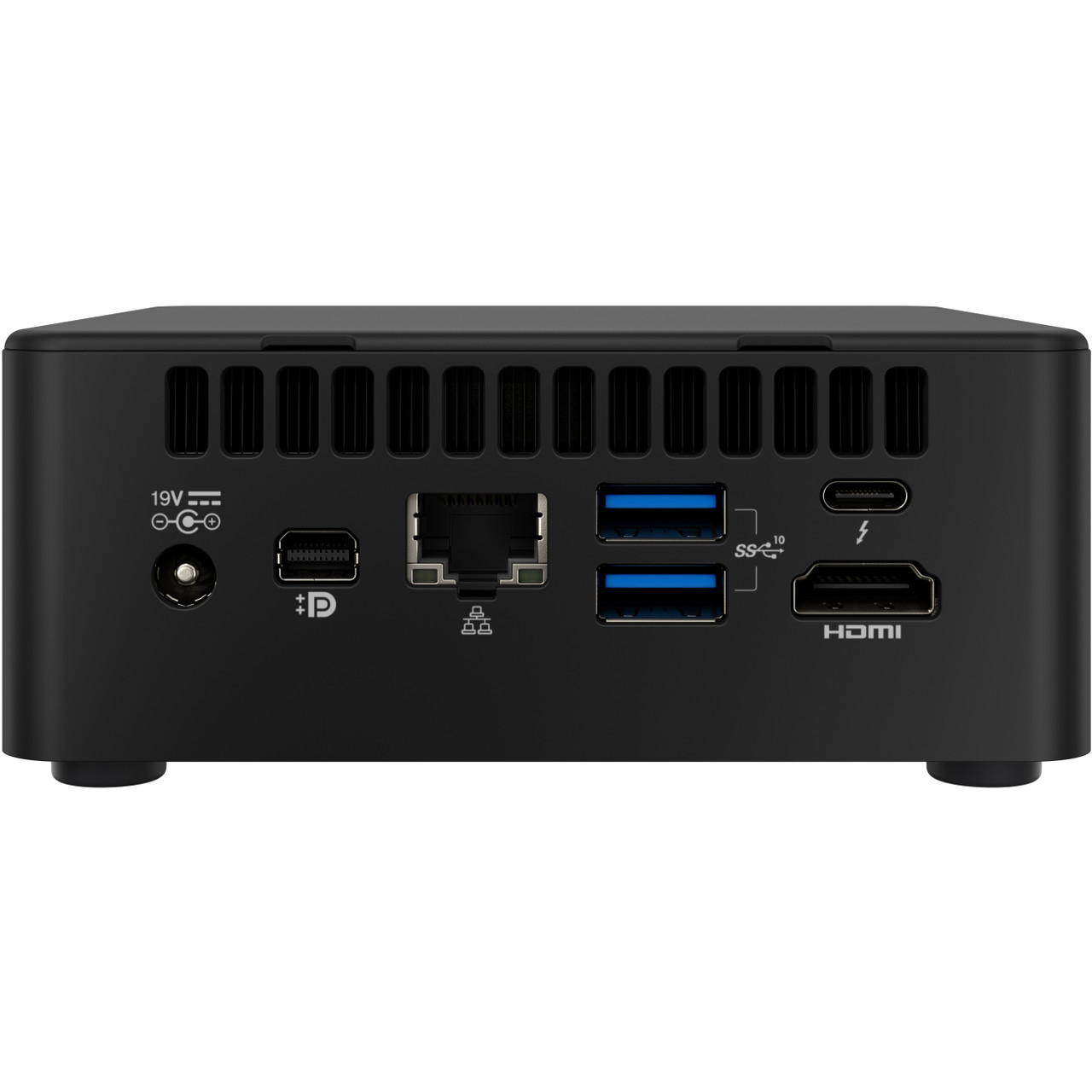

product type Mini PC barebones
Built-in Ethernet port
WIRELESS INTERNET ACCESS
WiFi 6 (802.11ax)
LAN controller Intel I225-V
Bluetooth
graphics card family intel
On-board graphics adapter model Intel® UHD Graphics
Number of displays supported 4
SATA connectors 2
HDD size 2.5"
DC input voltage 19 v
Supported storage drives HDD & SSD
supported storage drive sizes M.2.2.5
SSD form factor M.2
Number of supported storage drives 2
Width 117mm
depth 112mm
Height 51mm
expansion slots PCI Express slots version 4.0
