Product Description
i5-1135G7 11th Gen
number of CPU cores 4
processor threads 8th
Processor Boost Frequency 4.2GHz
processor cache 8MB
Thermal Design Power (TDP) 40W
Memory bandwidth supported by the processor (max). 51.2GB/s
CPU configuration (max) 1
Number of HDMI ports 1
Number of Ethernet LAN ports (RJ-45) 1
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type A ports 3
HDMI version 2.0b
Number of DisplayPort connections 1
Number of Mini DisplayPorts 1
DisplayPorts version 1.4
SATA III connectors 2
Number of USB ports 7
Number of Thunderbolt 3 ports 2
M. 2 card slot (memory) 2280
Direct current connection (DC)
Intel HD Audio Technology
Intel® Rapid Storage Technology
Intel® AES New Instructions (Intel® AES-NI)
Intel® Virtualization Technology for Direct I/O (VT-d)
Intel® VT-x with Extended Page Tables (EPT)
idle states
Intel® Platform Trust Technology (Intel® PTT)
Intel® Virtualization Technology (VT-X)
memory type SO DIMM
Number of memory slots 2
Number of DIMM slots 2
RAM memory maximum 64GB
Supported memory speed 3200MHz
Supported memory DDR4 SDRAM
memory channels dual channel
Memory bandwidth (max) 51.2GB/s
Removable memory card slot SDXC with UHS-II support
motherboard form factor UCFF
Number of processors supported 1
audio channels 7.1 channels
Consumer Rx Infrared Sensor
Supports Windows operating systems Windows 11 x64, Windows 10 x64
Commodity Classification System for Automated Tracking (CCATS) G157815L2
case type UCFF
product color Black

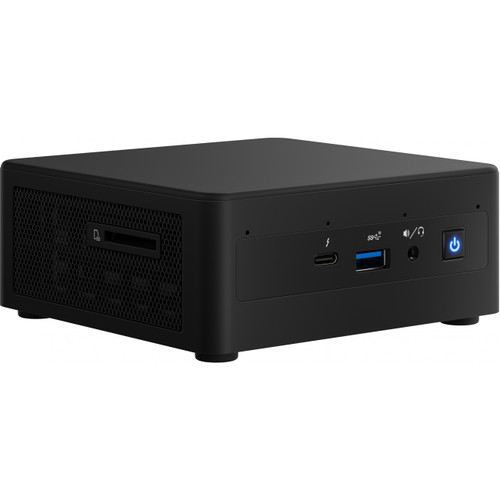

product type Mini PC barebones
network Built-in Ethernet port
WIRELESS INTERNET ACCESS Top WLAN standard WiFi 6 (802.11ax)
LAN controller Intel I225-V
Bluetooth
graphics card family intel
On-board graphics adapter model Intel® UHD Graphics
Number of displays supported 4
SATA connectors 2
HDD size 2.5"
DC input voltage 19 v
Supported storage drives HDD & SSD
supported storage drive sizes M.2.2.5
SSD form factor M.2
Number of supported storage drives 2
Width 117mm
depth 112mm
Height 51mm
expansion slots PCI Express slots version 4.0
