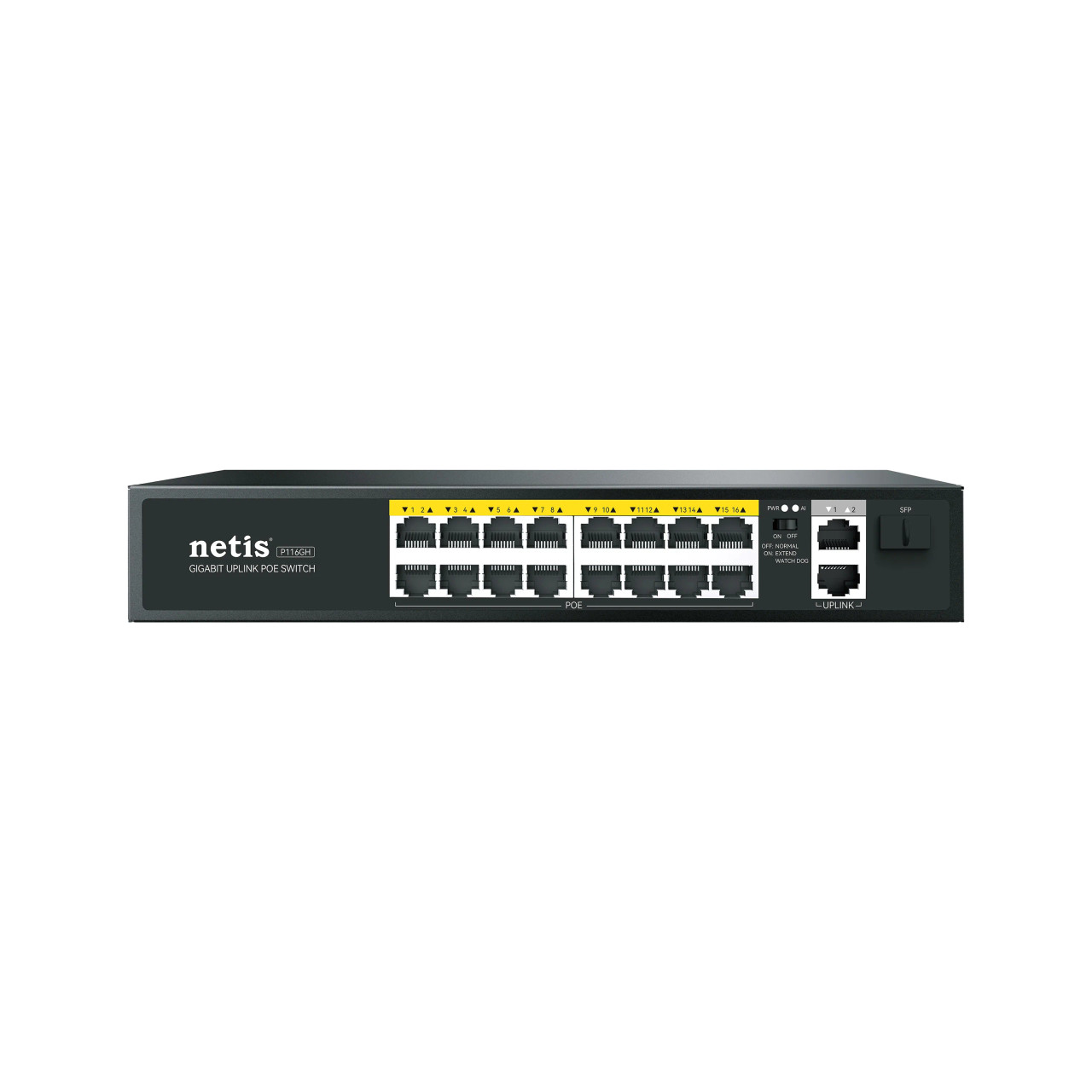

Product Description
|
Interface |
16 10/100M POE Ports (Data /Power) 2 10/100/1000M RJ45 Ports (Data) 1 SFP Slot(Data) |
|
Store & Forwarding |
Yes |
|
LED |
PWR - Lighting:The product is powered on Function indication - Lighting:The function switch is on and watch dog+ Extend Mode is enabled Port lights - Lighting:Port link is normal,Blinking: Data in transit |
|
Mode |
Normal Mode Extend+Watch Dog Mode |
|
Switching Capacity |
9.2G |
|
MAC Address Table Size |
2K |
|
Jumbo Frame |
2048 byte |
|
Power Input POE Standards |
Single port maximum power 30W, Whole switch maximum power 240W Support over-current, over-voltage and short-circuit protection Support Soft Start of High Power PD Support sequential boot-up Power Supply Pin:12+/36- AC 100~240V 50-60HZ |
|
Standards |
IEEE 802.3 10BASE-T Ethernet IEEE 802.3i 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3af/at, Power over Ethernet IEEE 802.3x Flow Control |
|
Mode |
Normal switch mode Watch dog + Extend mode |
|
Basic function |
Follow IEEE 802.3 Ethernet and IEEE802.3u Fast Ethernet Protocol Support POE IEEE 802. 3af/at compliant Powered Device (PD) Store-and-forward switching scheme Support IEEE802.3X full duplex and Backpressure half duplex MAC address auto-learning & auto-aging |
|
Data Transfer Rate |
10Mbps(Half-duplex and Full-duplex) 100Mbps(Half-duplex and Full-duplex) 1000Mbps(Full-duplex) |
|
Environment |
Operation Temperature：0℃～40℃ Storage Temperature：-40℃～70℃ Operation Humidity：10%～90% RH Non-condensing Storage Humidity：5%～90% RH Non-condensing |
|
Cabling type |
1000BASE-T : Cat5e or better UTP(≤100m) 100Base-TX: Cat 5e or better UTP/STP(≤100m) 10Base-TX: Cat 5e or better UTP/STP(≤250m) |
|
Dimensions |
270*180*45mm(L * W* H ) |
