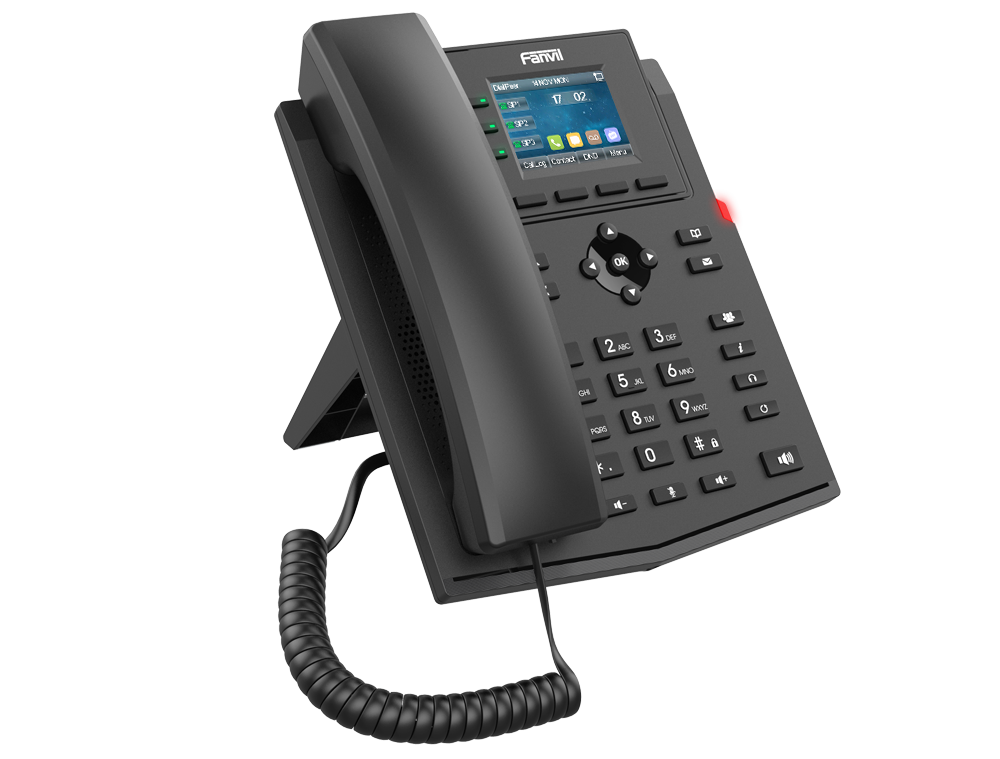

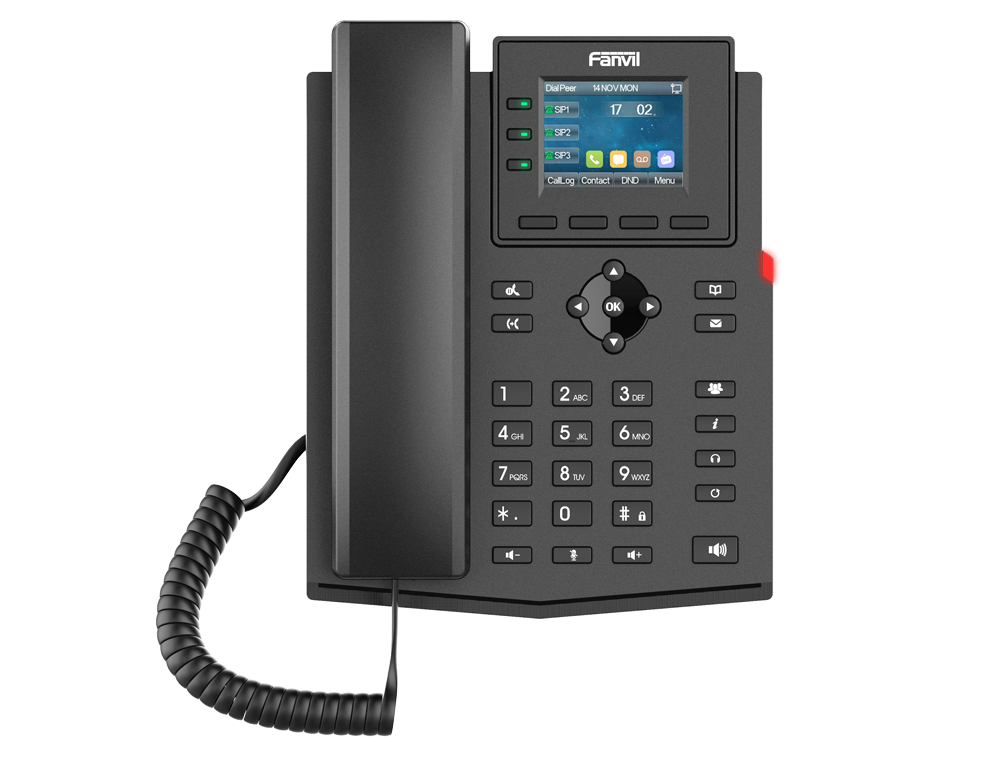

IP Fanvilx303W WI-FI-POE NO-POE FN0047

Product Description

Generic
 4 SIP Lines
 HD Voice
 PoE Enabled
 Built-in 2.4GHz & 5GHz Wi-Fi
 2.4-inch color screen
 Handset / Hands-free / Headset mode
 Desktop Stand / Wall mountable (optional)
 External Power Supply
Phone Functions
 Local Phonebook (1000 entries)
 Remote Phonebook (XML/LDAP, 1000 entries)
 Call logs (In/Out/Missed, 600 entries)
 Blocked List/Allowed List
 Screen saver
 Voice Message Waiting Indication (VMWI)
 Programmable DSS/Soft keys
 Network Time Synchronization
 Built-in Wi-Fi
 2.4GHz, 802.11 b/g/n
 5GHz, 802.11 a/n/ac
 Support Plantronics wireless headset (Through Plantronics
APD-80 EHS Cable)
 Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
 Support Recording (Through Server)
 Action URL / Active URI
 uaCSTA
Call Functions
 Call out / Answer / Reject
 Mute / Unmute (Microphone)
 Call Hold / Resume
 Call Waiting
 Intercom
 Caller ID Display
 Speed Dial
 Anonymous Call (Hide Caller ID)
 Call Forward (Always/Busy/No Answer)
 Call Transfer (Attended/Unattended)
 Call Parking/Pick-up (Depending on server)
 Redial
 Do-Not-Disturb
 Auto-Answering
 Voice Message (On server)
 6-way Conference
 Hot Line
 Hot desking
Audio
 HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz
Frequency Response)
 Wideband ADC/DAC 16KHz Sampling
 Narrowband Codec: G.711a/u,G.723.1,G.726, G.729A/B, iLBC
 Wideband Codec: G.722, Opus
 Full-duplex Acoustic Echo Canceller (AEC)
X303W is the cost-effective color screen Wi-Fi IP phone with high
performance specially for enterprise. It features a 2.4-inch 320x240 pixel
color screen, supporting 4 SIP lines and local 6-party conferencing to render
a user-friendly experience. X303W has rich functions such as HD audio and
built-in 2.4GHz & 5GHz Wi-Fi, providing an efficient and high-quality
business communication experience for enterprises.
Highlights
□√ 2.4-inch 320x240 pixel color screen
□√ Support audio codec G.722 and Opus, HD audio on speakerphone and
handset
□√ Support 6-party local conference
□√ Support EHS wireless headset
□√ Built-in 2.4GHz& 5GHz Wi-Fi, realizing more flexible connectivity
□√ Two installation methods of desktop stand and wall mountable
 Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)
/ Background Noise Estimation (BNE) / Noise Reduction (NR) /
Automatic Gain Control (AGC)
 Packet Loss Concealment (PLC)
 Dynamic Adaptive Jitter Buffer
 DTMF: In-band, Out-of-Band (RFC2833/ SIP INFO)
 VQM voice quality monitoring
Network
 Physical: 10/100 Mbps Ethernet, dual bridged port for PC bypass
 IP Mode:IPv4/IPv6
 IP Configuration: Static IP / DHCP / PPPoE
 Wi-Fi Encryption:WPA /WPA2-PSK /802.X EAP
 Network Access Control: 802.1x
 VPN: L2TP / OpenVPN
 VLAN
 LLDP
 QoS
 RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
Protocols
 SIP2.0 over UDP/TCP/TLS
 RTP/RTCP/SRTP
 STUN
 DHCP
 IPv6
 LLDP
 PPPoE
 802.1x
 L2TP
 OpenVPN
 SNTP
 FTP/TFTP
 HTTP/HTTPS
 TR-069
 AES128 & AES256
Deployment & Management
 Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP
PNP/TR-069
 Web Management Portal
 Web-based Packet Dump
 Configuration Export / Import
 Phonebook Import/Export
 Firmware Upgrade
 Syslog
Physical Specifications
 LCD: 2.4-inch (320x240) Color Screen
 Keypad: 36 keys, including
 4 Soft-keys
 9 Function keys (Hold/Transfer/Voice
message/Conference/Phonebook
/MWI/Headset/Redial/Hands-free)
 3 Line keys (With LED Indicator Light)
 4 Navigation keys
 1 OK key
 12 Standard Phone Digits keys
 3 Volume Control keys (Up/Down/Mute (Microphone))
 Handset (RJ9) x1
 Standard RJ9 Handset Wire x1
 1.5M CAT.5E Ethernet Cable x1
 Desktop stand x1
 Status Indicator Light x1 (Red)
 RJ9 Port x2: Handset x1, Headset x1
 RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
 Security Slot x1
 DC Power Input: DC5V / 1A
 Power Consumption(Adapter): 1.218~2.39W
 Power Consumption(PoE): 2.12~3.49W
 Working Temperature: 0~45℃
 Working Humidity: 10~95%
 Installation:
 Desktop Stand
 Wall mountable (optional )
 Color: Black
