Product Description
Technology
Projection System
3LCD Technology, RGB liquid crystal shutterLCD Panel
0,61 inch with C2 FineImage
Color Light Output
4.000 Lumen- 2.400 Lumen (economy) In accordance with IDMS15.4White Light Output
4.000 Lumen - 2.400 Lumen (economy) In accordance with ISO 21118:2020Resolution
1080pResolution Enhancement
Full HDAspect Ratio
16:9On-Screen Pixel Count
2,073,600Contrast Ratio
16.000 : 1Light source
LampLamp
UHE, 230 W, 6.500 h durability, 17.000 h durability (economy mode)Keystone Correction
Auto vertical: ± 30 °, Manual horizontal ± 30 °Colour Video Processing
10 Bits2D Vertical Refresh Rate
100 Hz - 120 HzColour Reproduction
Upto 1.07 billion coloursOptical
Throw Ratio
1,32 - 2,14:1Zoom
Manual, Factor: 1 - 1,6Lens
OpticalScreen Size
30 inches - 300 inchesProjection Distance Wide/Tele
1,76 m - 2,86 m ( 60 inch screenProjection Lens F Number
1,51 - 1,99Projection Lens Focal Length
18,2 mm - 29,2 mmProjection Lens Focus
ManualOffset
10 : 1Connectivity
USB Display Function
2 in 1: Image/ SoundInterfaces

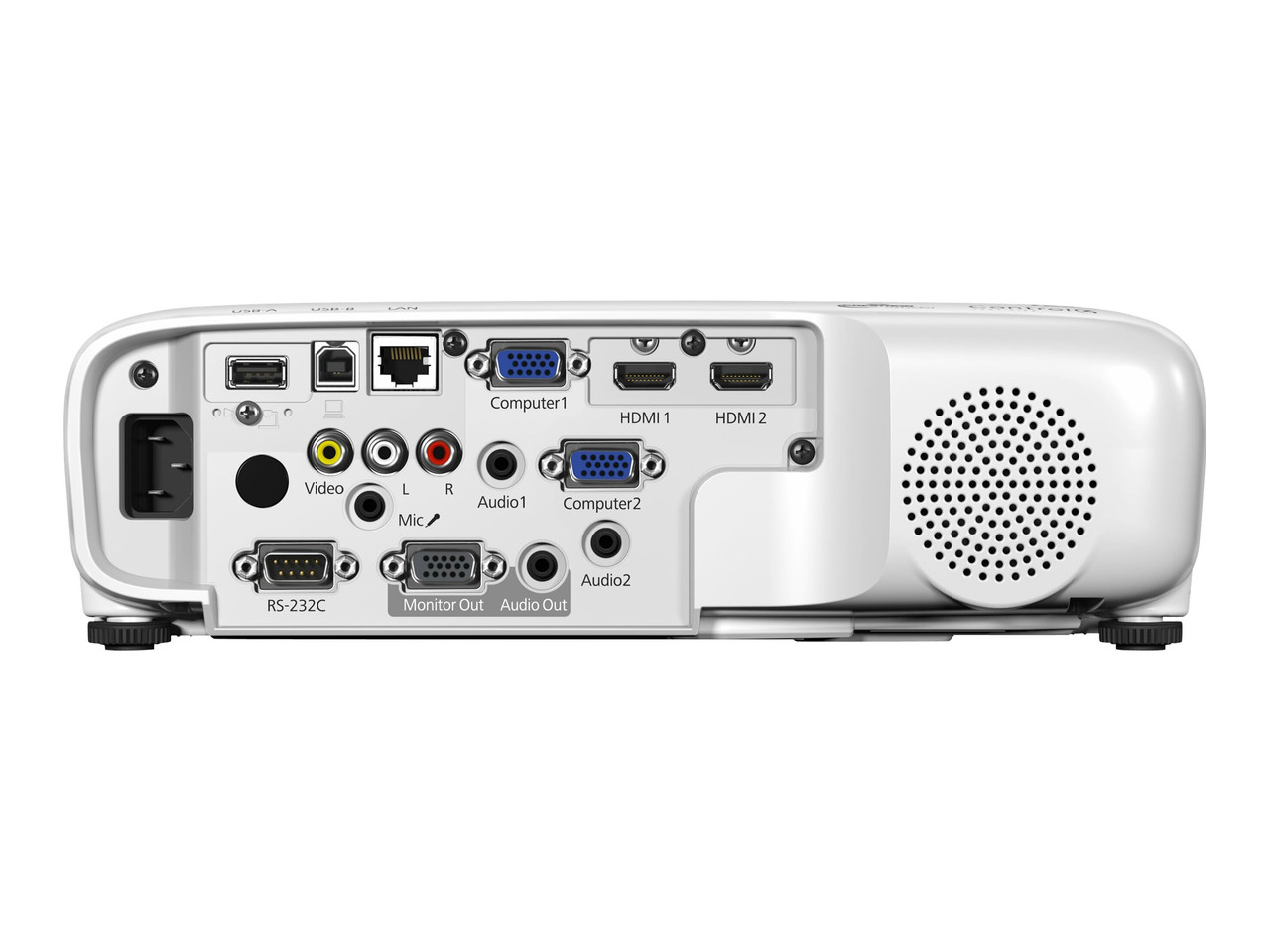

USB 2.0-A, USB 2.0, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), VGA in (2x), VGA out, HDMI in (2x), Composite in, Jack plug out, Jack plug in (2x), Cinch audio in, Microphone input, Miracast, Wireless LAN IEEE 802.11a/b/g/n/acEpson iProjection App
Ad-Hoc / InfrastructureNetwork Protocol
PJLinkAdvanced Features
Security
Kensington lock, Control panel lock, Security cable hole, Wireless LAN security, Password protection2D Colour Modes
Dynamic, Cinema, Presentation, sRGB, BlackboardOther features
AV Mute Slide, Automatic keystone correction, Built-in speaker, CEC compatible, Direct Power on/off, Document Camera Compatible, Easy OSD pre-setting, Horizontal and vertical keystone correction, Network projection, OSD copy function, PC Free, Quick Corner, Split-Screen-Function, Wireless LAN capable, iProjecton set-up by QR codeVideo Color Modes
Blackboard, Cinema, Dynamic, Presentation, sRGBProjector control
via: AMX, Crestron, Control4, ExtronGeneral
Power consumption
286 Watt (Normal On-Mode), 180 Watt (Eco On-Mode), 327 Watt (Normal Peak-mode), 225 Watt (Eco Peak-Mode), 0,3 Watt (Energy saving standby)Supply Voltage
AC 100 V - 240 V, 50 Hz - 60 HzProduct dimensions
309 x 282 x 90 mm (Width x Depth x Height)Product weight
3,1 kgNoise Level
Normal: 37 dB (A) - Economy: 28 dB (A)Supported Temperature
Operation 5° C - 40° C, Storage -10° C - 60° CSupported Humidity
Operation 20% - 80%, Storage 10% - 90%If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, places where a lot of smoke or bubbles are used for event staging, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation which over time could break and cause the projector to drop from the ceiling.
If you are concerned about the environment in which your projector is installed, or if you have any other questions, please contact our support department and they can provide additional assistance.
