Product Description
DHI-ARC3800H-W2 (868) Alarm Control Panel:
- Port & Wireless Zone: Supports up to 150 channels for wireless peripherals including sirens, PIR cameras, keyfobs, keypads, and repeaters.
- Storage Battery: Built-in 4,750mAh rechargeable lithium battery for reliable backup power.
- Video & Audio: 8-channel IPC for alarm video upload, 1 audio output channel with volume control, and local speaker for voice broadcast.
- Functionality: Indicator lights for status indication, multiple arming/disarming methods, remote update via cloud, and more.
DHI-ART-ARC3000H-03-W2(868) Alarm Kit:
- KIT Components included:
- 1x wireless PIR sensor (ARD1233-W2-868)
- 1x wireless door sensor (ARD323-W2-868)

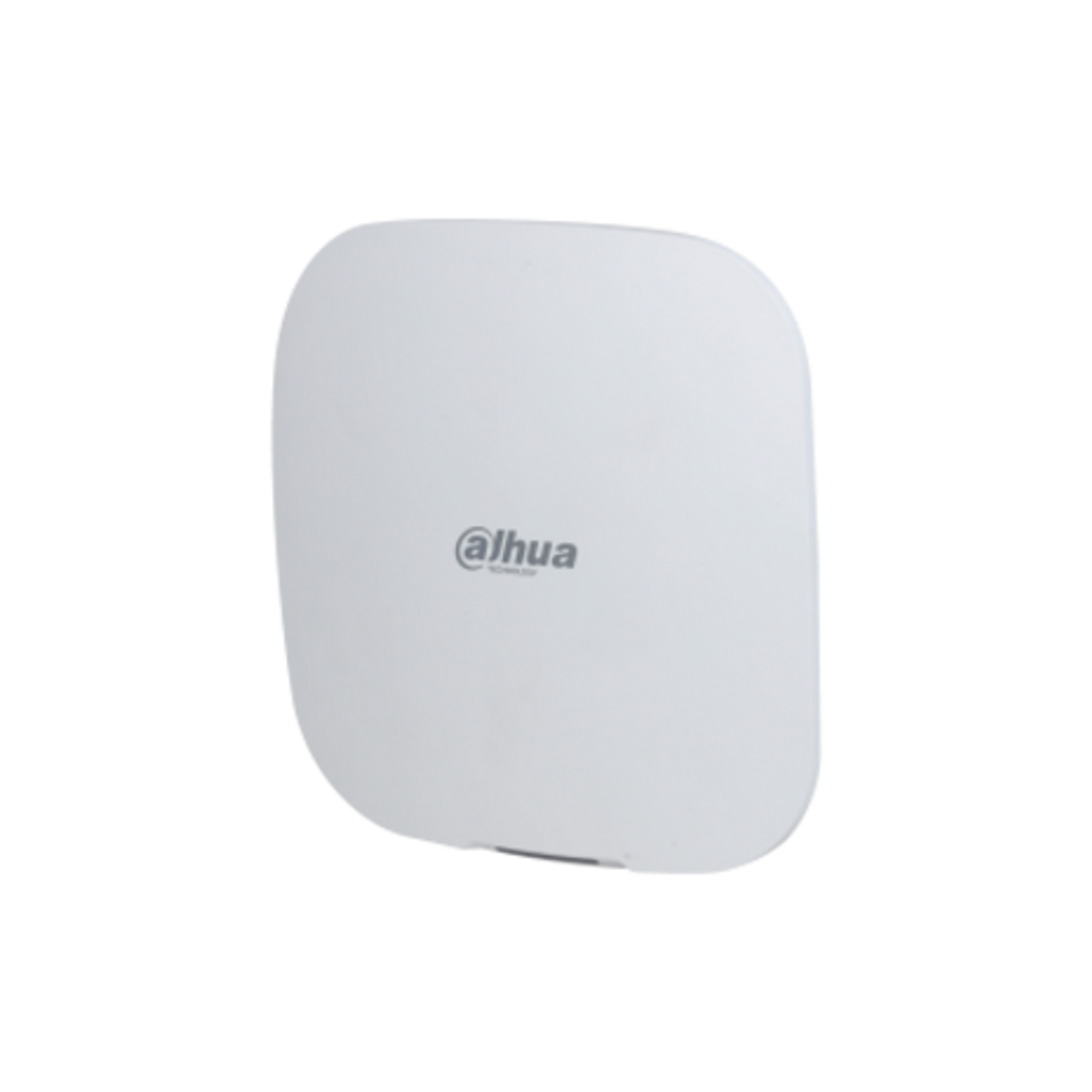

- 1x alarm hub (ARC3000H-FW2-868)
- 1x remote control (ARA24-W2-868).
- Wireless PIR Detector (ARD1233-W2-868): Detects intruders within a range of 12m, with adjustable sensitivity levels and two-way communication mechanism. for more specification click here
- Wireless Door Sensor (ARD323-W2-868): Alerts upon door opening, compatible with DMSS mobile app for real-time monitoring, and powered by CR123A battery with a long lifespan. for more specification click here
- ARC3000H-FW2-868 Alarm HUB: Supports up to 150 wireless devices, real-time notifications via DMSS app, dual-band WiFi, and Ethernet port for communication. for more specification click here
- Wireless Remote Control (ARA24-W2-868): Compact design with four buttons for arming, disarming, partial arming, and SOS panic, operating on 868.0 MHz to 868.6 MHz carrier wave. For more specification click here
Specifications Summary:
- Wireless Protection Zone: 150 channels (6 sirens, 64 radio key fobs).
- Communication Range: Up to 2,000m in open terrain.
- Encryption: AES128, Frequency Hopping.
- WiFi: 2.4G.
- Temperature Range: -10°C to 55°C.
- Humidity Range: 10% to 90%.
- Certifications: CE Certified.
