Product Description
Overview

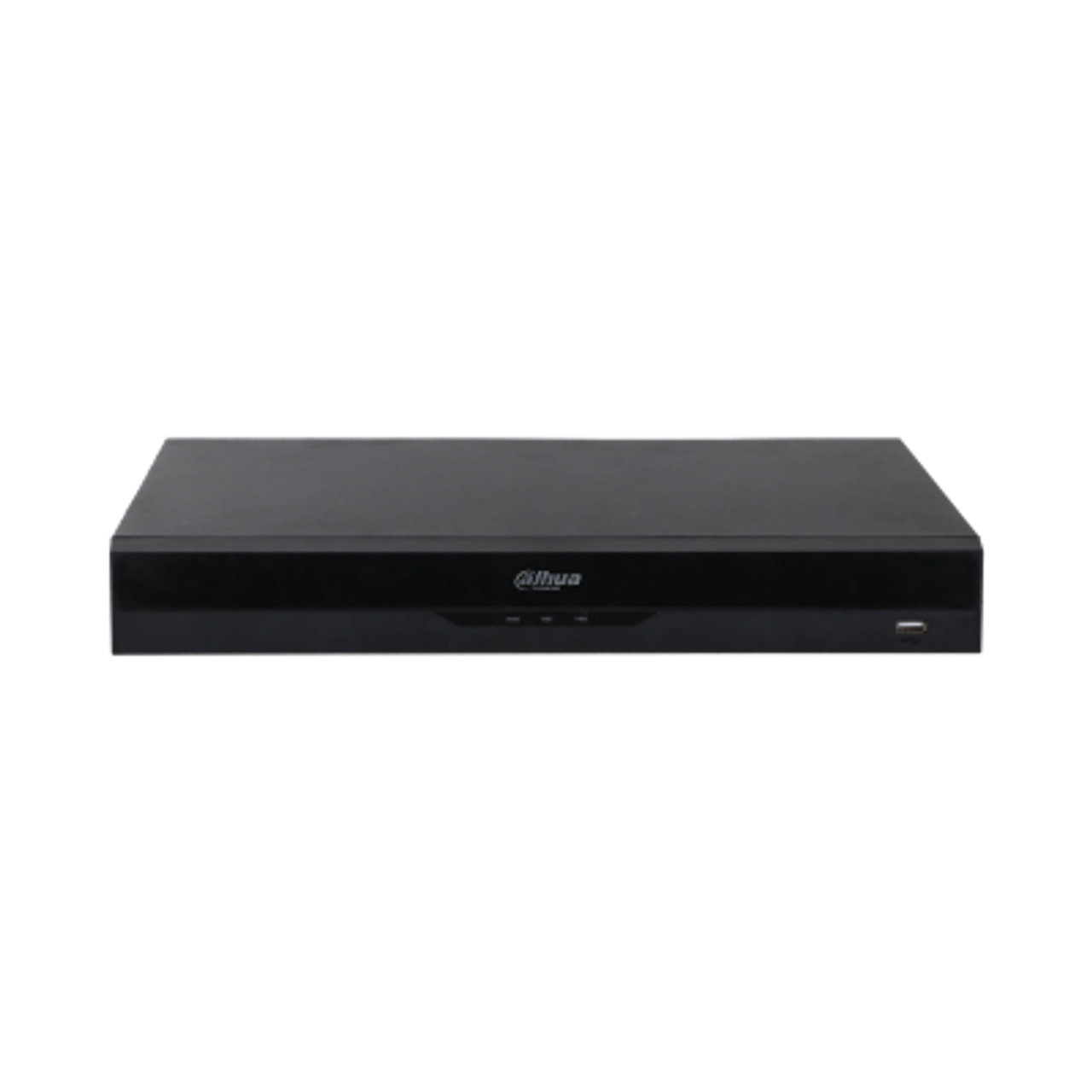

An 8-channel NVR (Network Video Recorder) in a slim 1U rack-mount form factor, designed to accommodate two 2.5″ SATA hard drives for storage. It's part of the WizSense lineup, powered by AI for enhanced surveillance capabilities.
Video & AI Capabilities
-
Supported Formats: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
-
Bandwidth:
-
Up to 256 Mbps for access, recording, and forwarding when AI is off
-
Reduced to 180 Mbps when AI features are active
-
-
Decoding Capacity: Can decode up to 16 streams of 1080p at 30 fps, with adaptive decoding based on stream resolution and performance load
-
AI from the Recorder:
-
Face Detection & Recognition on 1 channel
-
Perimeter Protection on 2 channels (with up to 10 IVS rule sets per channel)
-
SMD Plus (Smart Motion Detection—secondary filtering for human/motor vehicle) across 4 channels
-
-
AI via Cameras: When paired with compatible cameras, adds capabilities like face detection/recognition, perimeter protection, SMD Plus, people counting, stereo analysis, and heat mapping
System & Interfaces
-
Processor & OS: Industrial-grade processor with embedded Linux OS
-
User Interface: Web-based UI and local GUI for on-premise control
-
Video Outputs:
-
1 × HDMI (up to 4K @ 30 fps)
-
1 × VGA (up to 1080p)
-
Configurable simultaneous display
-
-
Ports & I/O:
-
Audio: 1 × RCA in, 1 × RCA out
-
Alarm: 4 × inputs, 2 × outputs
-
USB: 2 × USB 2.0 (front and rear)
-
Network: 1 × RJ-45 (10/100/1000 Mbps)
-
-
Storage: 2 SATA ports—supports up to 16 TB total (capacity dependent on environmental conditions)
Recording & Playback
-
Modes: General recording, motion detection, intelligent (AI-triggered), alarm-based
-
Playback Options: Instant playback, event/tag playback, smart playback, and general timeline navigation
-
Backup: Via USB or network
-
Smart Search Tools: AI-assisted event search, face recognition, SMD event filtering, quick pick (for AI-related object retrieval)
Network & Security
-
Protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, UDP, SMTP, NTP, DHCP, DNS, IP filtering, PPPoE, DDNS, FTP, Alarm Server, Dahua IP Search, P2P
-
Mobile Access: iOS and Android support
-
Interoperability: ONVIF Profile S/T, CGI, SDK, and major browser compatibility
Alarm & Event Handling
-
Supports general alarms (motion, masking, video loss, scene change, IPC alarms), and anomaly alarms (camera disconnect, disk errors, storage issues, IP/MAC conflicts, login locks)
-
Intelligent Alarms: Face-based, perimeter, people count, heat map, SMD Plus, stereo analysis
-
Configurable alarm actions: record, snapshot, buzzer, email, log entry, IPC output, preset movement
Physical & Environmental Specs
-
Mounting Options: Rack-mount (1U) or desktop
-
Operating Temperature: –10 °C to +55 °C (14 °F to 131 °F)
-
Storage Temperature: –20 °C to +60 °C (–4 °F to 140 °F)
-
Humidity: 10%–93% (non-condensing)
-
Certifications: FCC, CE-EMC, CE-LVD compliant
