Product Description
Overview

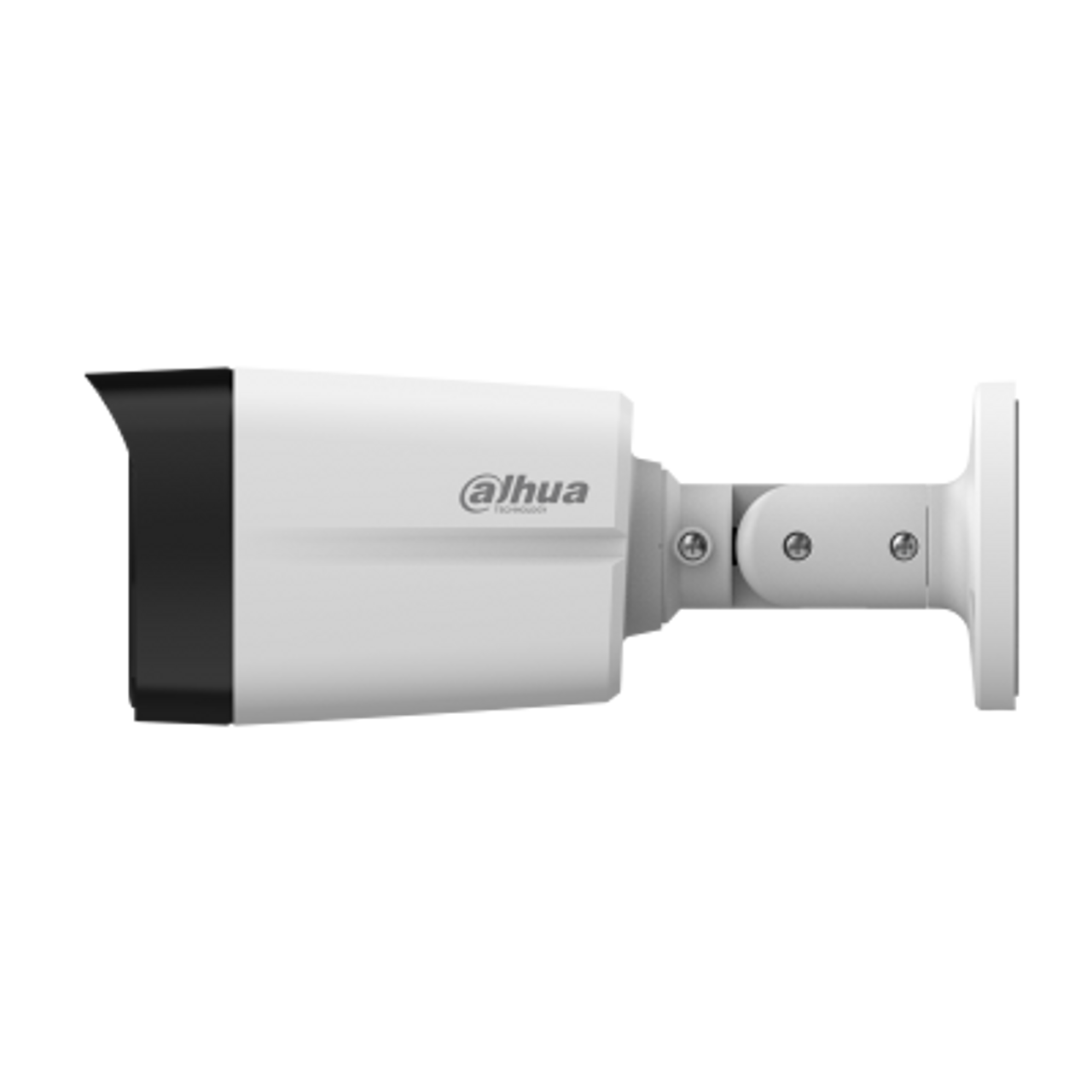

This model delivers full-color, starlight-level imaging using warm white LEDs, ideal for round-the-clock surveillance in low-light settings. It supports multiple analog formats (CVI, AHD, TVI, CVBS) and features weatherproof construction for outdoor use.
Image Sensor & Video
-
Resolution: 5 MP (2880 × 1620), up to 25 fps in 16:9 ratio
-
Sensor: 1/2.7″ CMOS
-
Wide Dynamic Range (WDR): True 120 dB WDR with 3D Noise Reduction (3D-NR) for clear performance under challenging lighting
Illumination
-
Full-Color Starlight: Maintains natural color even in near darkness
-
Warm LED Lights: Two built-in LEDs capable of illuminating up to 40 m
-
Smart Light features: Auto/manual control, Smart Light+, and area-based lighting adjustments
Lens & Field of View
-
Focal Length Options: 3.6 mm standard (2.8 mm optional)
-
Aperture: Approximately F1.2
-
Field of View:
-
2.8 mm: ~112° H × 57° V × 132° diagonal
-
3.6 mm: ~88° H × 46° V × 104° diagonal
-
-
DORI Ranges (3.6 mm lens):
-
Detect: ~80 m
-
Observe: ~32 m
-
Recognize: ~16 m
-
Identify: ~8 m
-
Video Output
-
Switchable outputs: CVI, AHD, TVI, CVBS via BNC connector
-
OSD Menu Control over coax or UTP connections
Audio
-
Includes a built-in microphone for audio capture (transmitted via the coax cable)
Build & Environmental
-
Housing: Durable bullet-style design, IP67 rated for full weather resistance
-
Flexible mounting angles: Pan 0°–360°, Tilt 0°–90°, Rotation 0°–360°
-
Power Supply: 12 V DC (±30%)
-
Power Consumption: Up to ~5 W when LEDs are active
-
Operating Temperature: Typically rated for –40 °C to +60 °C
