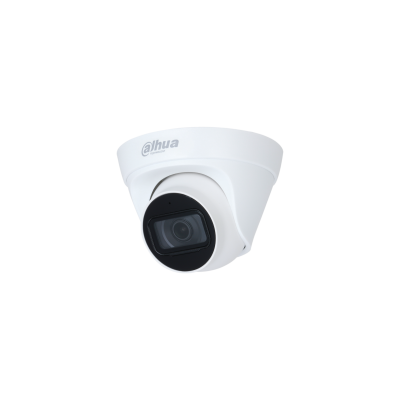

Dahua 4mpx Dome network camera IR 30mt DH-IPC-HDW1430T1-0360B-S5

Technical Specification

Camera

Image Sensor

1/3" CMOS

Effective Pixels

2560 (H) × 1440 (V)

RAM/ROM

64MB/16MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Minimum Illumination

0.03 lux@F2.0 (Color,30 IRE)

0.003 lux@F2.0 (B/W,30 IRE)

0 lux (Illuminator on)

S/N Ratio

More than 56dB

IR Distance

30 m (98.43 ft) (IR)

IR On/Off Control

Auto/ Manual

IR LEDs

1

Lens

Lens Type

Fixed

Mount Type

M12

Focal Length

2.8 mm

3.6 mm

Max. Aperture

F2.0

Angle of View

2.8 mm: H: 90°; V: 50°; D: 107°

3.6 mm: H: 76°; V: 40°; D: 92

Focus Control

Fixed

Close Focus Distance

2.8 mm: 1 m (3.28 ft)

3.6 mm: 1.4 m (4.59 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

68.0 m (223.10 ft)

27.2 m (89.24 ft)

13.6 m (44.62 ft)

6.8 m (22.31 ft)

3.6 mm

85.2 m (279.52 ft)

34.1 m (111.88 ft)

17.0 m (55.77 ft)

8.5 m (27.88 ft)

PTZ

Pan/Tilt Range

Pan: 0°–355° Tilt: 0°–78° Rotation: 0°–355°

Video

Compression

Smart Codec

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart H.265+; Smart H.264+

Streaming Capability

2 Streams

Resolution

4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Frame Rate

Main stream: 2560 × 1440@ (1–25/30 fps)

Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 32 Kbps–4096 Kbps

H.265: 12 Kbps–4096 Kbps

Day/Night

Auto(IR-Cut) / Color / B/W

BLC Mode

BLC / HLC

WDR

DWDR

Gain Control

White Balance

Auto/Manual

Auto; natural; street lamp; outdoor; manual; regional custom

Noise Reduction

3D DNR

Motion Detection

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image

Support

Smart IR

Support

Flip

0°/180° (0° by default)

Mirror

Yes

Privacy Masking

4 Areas

Audio & Alarm

Compression

Built-in MIC

Alarm Event

G.711a; G.711Mu; G.726; PCM

Yes

Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; security exception

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast

Interoperability

ONVIF (Profile S/Profile T); CGI; P2P

Streaming Method

Unicast / Multicast

Max. User Access

6 (Total bandwidth: 24 M)

Edge Storage

FTP

Web Viewer

IE, Chrome, Firefox

Management Software

Smart PSS, DSS, DMSS

Smart Phone

Cyber Security

IOS, Android

Configuration encryption; trusted execution; digest; security logs; HTTPS; trusted upgrade; WSSE; trusted boot; account lockout; generation and importing of X.509 certification; video encryption

Certifications

Certifications

Interface

Video Interface

N/A

Audio Interface

N/A

RS485

N/A

Alarm

N/A

Electrical

Power Supply

DC12V/PoE (802.3af)

Power Consumption

Basic: 1.6 W (12 VDC); 2.4 W (PoE) Max. (ICR + H.265+IR intensity): 3.6 W (12 VDC); 4.7 W (PoE)
