Product Description
General Overview

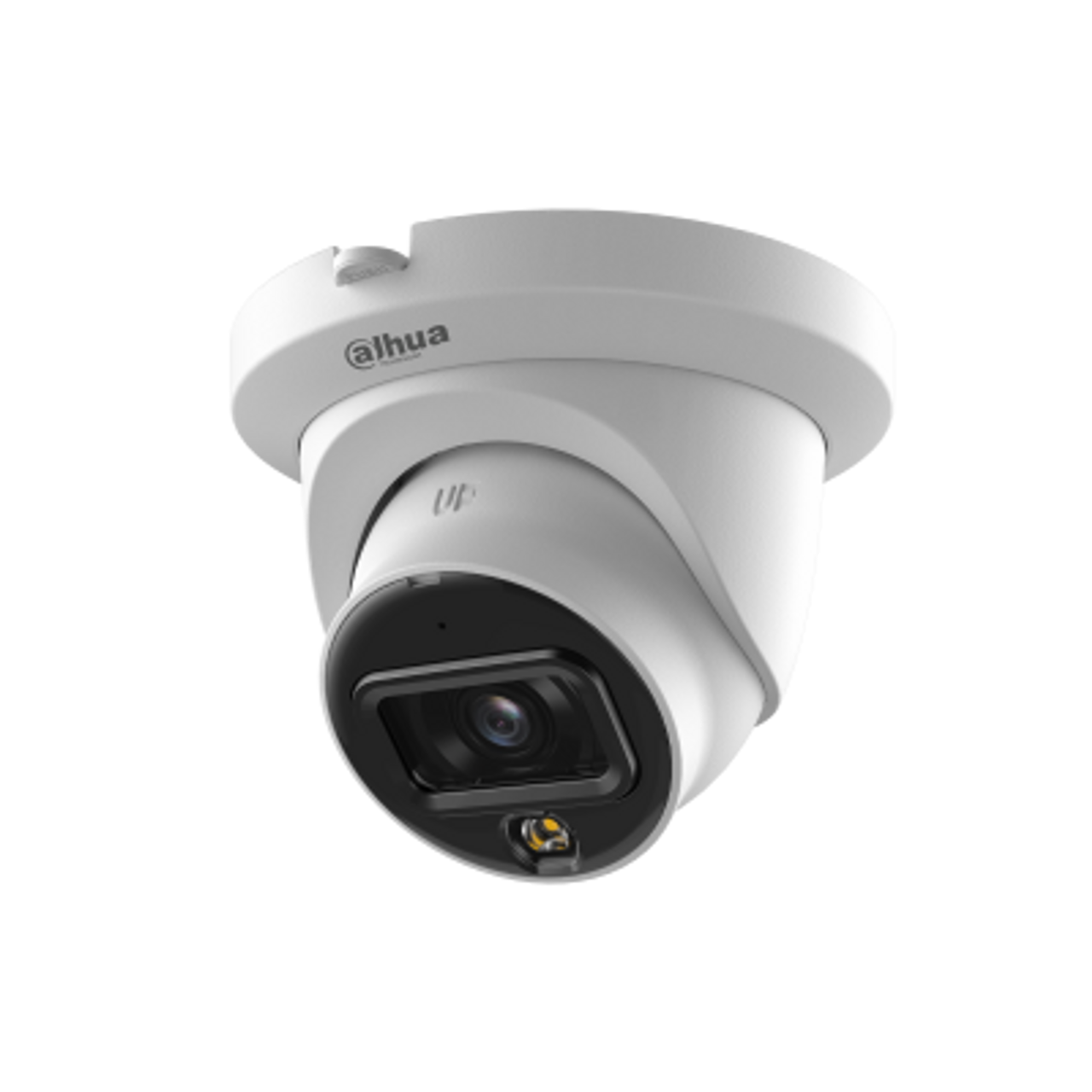

A 2 MP HDCVI eyeball camera in the Lite Series that supports Smart Dual Light for smarter illumination, perfect for both indoor and outdoor environments. It offers flexible integration, easy installation, and reliable performance.
Imaging & Sensor
-
Resolution: Full HD 1080p (1920 × 1080) at up to 30 fps
-
Sensor: 2 MP progressive CMOS
-
Shutter Speed: PAL: 1/25 s – 1/100,000 s; NTSC: 1/30 s – 1/100,000 s
-
Minimum Illumination:
-
Color mode: 0.01 lux (F2.0, 30 IRE)
-
Black & White: 0.001 lux
-
0 lux with lights activated
-
Smart Dual Light & Illumination
-
Smart Dual Light technology automatically switches between:
-
White LED light (for full-color night imaging)
-
Infrared (IR) illumination
-
Combined mode, based on detection and lighting conditions
-
-
Illumination Range: Approximately 20 meters (65 ft) for both white and IR lights
Lens & Viewing Angle
-
Fixed Lens: 2.8 mm (option to choose 3.6 mm in some variants)
-
Field of View:
-
Horizontal: ~102°
-
Vertical: ~60°
-
Diagonal: ~129°
-
Image Enhancement & Features
-
3D Noise Reduction (3D NR) for clearer imaging in low light
-
Wide Dynamic Range (WDR), BLC/HLC for better contrast in mixed-light scenes
-
Audio: Built-in microphone (supports audio transmission via coax cable)
-
Output Modes: Compatible with CVI, CVBS, AHD, and TVI via switchable output
Build & Environmental Resistance
-
Housing: Eyeball-style metal enclosure
-
Ingress Protection: IP67-rated—fully dustproof and protected against temporary immersion
-
Wide Voltage Support: ±30% tolerance around 12 V DC
-
Operating Temperature: Roughly −40 °C to +60 °C (extreme environment resilience)
Mounting & Installation
-
Quick-to-install eyeball design with 3-axis adjustment (360° pan, 0–78° tilt, 360° rotation) for flexible placement
-
Suitable for ceiling, wall, or pole mounting
