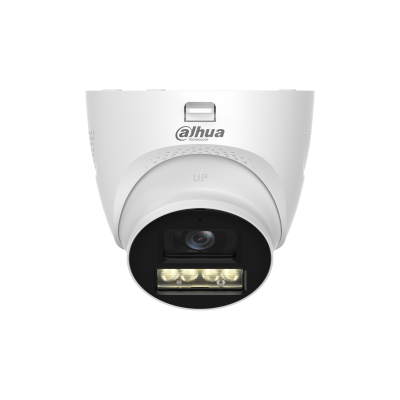

Dahua 2MP Smart Dual Light HDCVI Two-way Talk Fixed-focal Eyeball Camera HAC-HDW1200TQ-IL-T-0280B-DIP

Camera

Image Sensor

2 MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100,000 s
NTSC: 1/30 s–1/100,000 s

Min. Illumination

0.01 lux@F2.0 (Color, 30 IRE)
0.001 lux@F2.0 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>65 dB

Illumination Distance

40 m (131.23 ft)

Illuminator On/Off Control

Auto;Manual

Illuminator Number

4 (Multi-core light)

Angle Adjustment

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F2.0

Field of View

2.8 mm: H: 111.3°; V: 60.8°; D: 134.2°
3.6 mm: H: 89°; V: 48.2°; D: 109.1°

Close Focus Distance

2.8 mm: 0.5 m (1.64 ft)
3.6 mm: 0.7 m (2.30 ft)

DORI Distance

Video

Video Frame Rate

CVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps;
AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps;
TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps;
CVBS: PAL: 960H; NTSC: 960H

Resolution

1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Day/Night

Auto(ICR)/Color/B/W

BLC

BLC; HLC; WDR; HLC-Pro

WDR

DWDR

White Balance

Auto

Gain Control

Manual;Auto

Noise Reduction

3D NR

Illumination Mode

Smart IR&WL (CVI, TVI); WL Mode; IR Mode

Mirror

Yes

Pick-up Distance

8 m (26.25 ft)

Certification

Certifications

CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;

Audio

Built-in Mic

Yes, up to 8 m (26.25 ft)

Camera Audio

CVI; TVI

Two-way Talk

Yes (CVI, TVI)

Speaker

Yes, up to 8 m (26.25 ft)

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)

Power

Power Supply

12 VDC (±30%) (It is recommended to use a power adapter to supply the power for one camera)

Power Consumption

Max 9.37 W (12 VDC, IR on)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

<95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

<95% (RH), non-condensing

Protection

IP67

Anti-corrosion Level

Basic Protection

Structure

Casing Material

Dome (metal + plastic) + plastic enclosure

Product Dimensions

Φ109.9 mm × 105.9 mm (Φ4.33" × 4.17")

Net Weight

0.32 kg (0.71 lb)

Gross Weight

0.44 kg (0.97 lb)

Installation

Wall mount; ceiling mount; vertical pole mount
