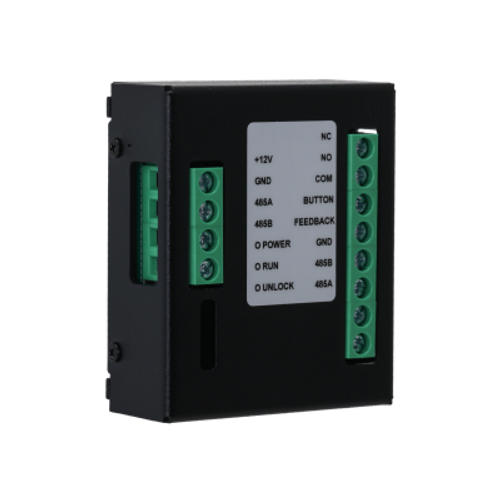

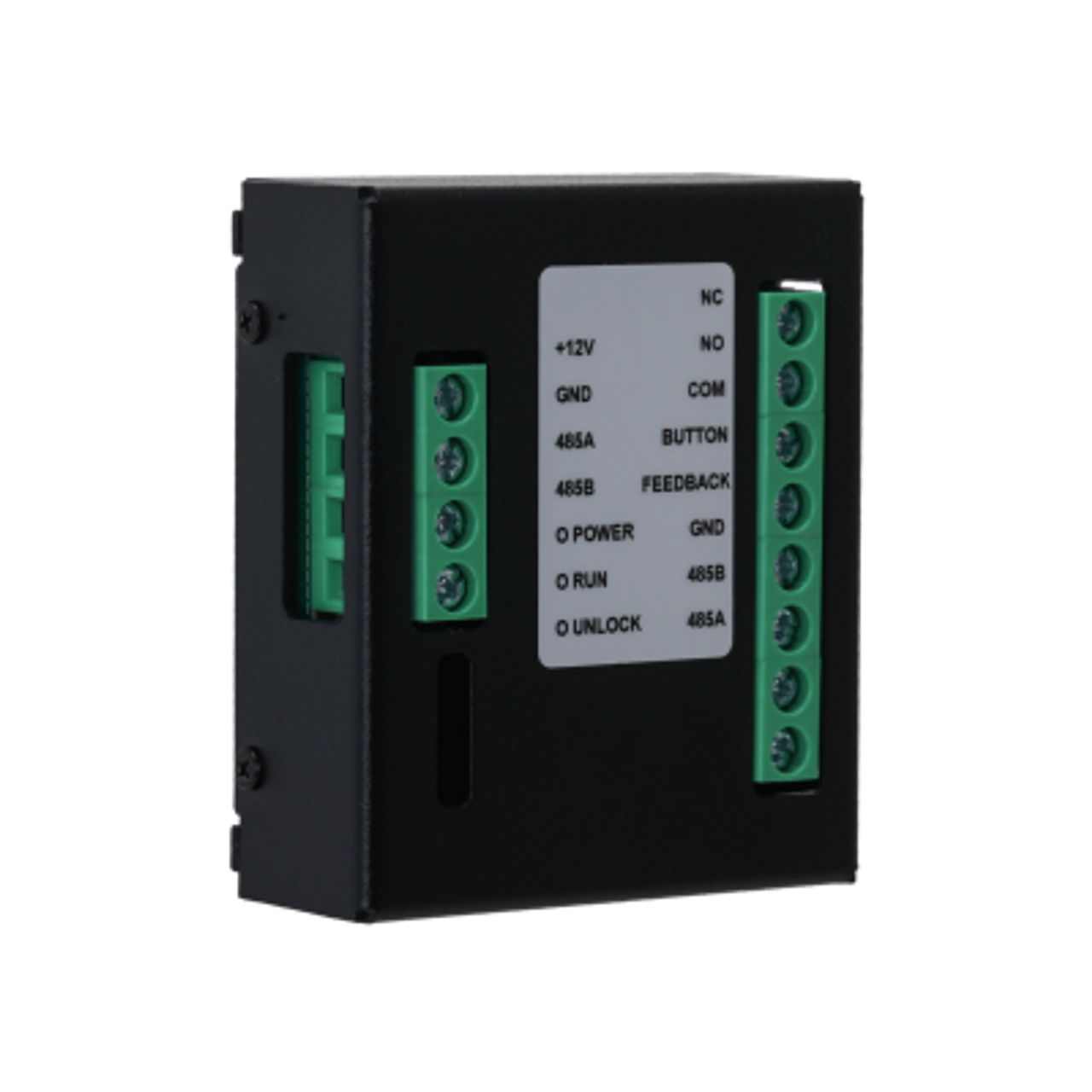

Product Description
Core Features
-
Access Control Expansion: Works alongside access control terminals or door stations to manage additional locks, input from card readers, door sensors, and exit buttons.
-
Lock Outputs: Supports both Normally Open (NO) and Normally Closed (NC) lock control options.
-
User Inputs: Can connect to a door-open (exit) button and supports door status detection.
Technical Basics
-
Communication Interface: Uses RS-485 bus for communication with the main system.
-
Card Input: Integrates card swipe input functionality when paired with a card reader.
-
Indicators: Provides multiple LED indicators showing power status, operational (running) status, and unlock signal status.
Power & Consumption
-
Supply Voltage: 12 V DC (±10% tolerance).
-
Power Usage: Very efficient — around ≤ 0.5 W in standby and up to 1 W during actual operation.
Physical & Environmental
-
Dimensions: Approximately 58 mm × 51 mm × 24.5 mm (width × depth × thickness).
-
Weight: Roughly 0.56 kg (560 g).
-
Operating Conditions: Functions reliably between –10 °C and +60 °C, and handles humidity levels from 10% to 90% (non-condensing).
Usage & Installation
-
Ideal for setups requiring a secondary door or lock (e.g., in security portals or mantraps).
-
Fits into standard 86-type gang boxes for neat, protected installation.
-
Connects seamlessly with outdoor intercom stations (VTO series) and indoor control systems, enhancing access control capabilities.
