Product Description

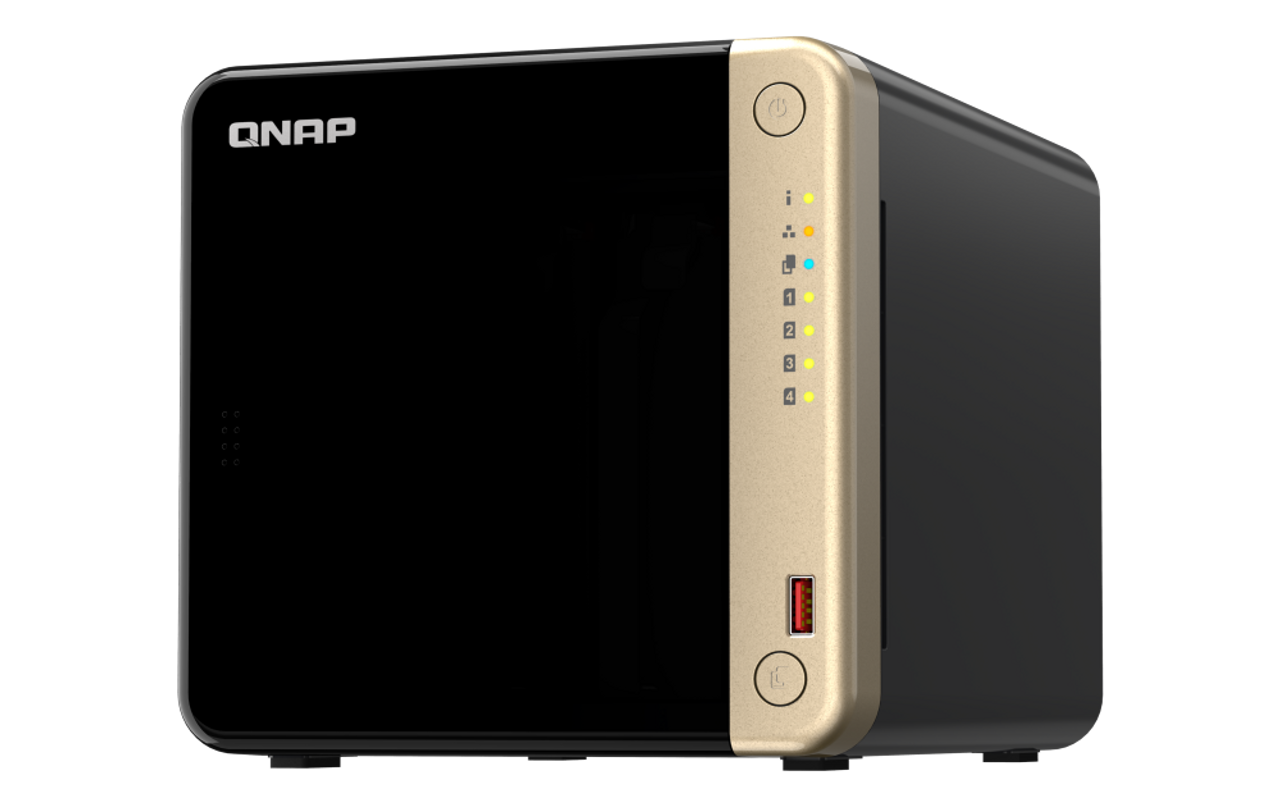

TS-464-8G
CPU Intel® Celeron® N5095 4-core/4-thread processor, burst up to 2.9 GHz
CPU Architecture 64-bit x86
Graphic Processors Intel® UHD Graphics
Floating Point Unit Yes
Encryption Engine Yes (AES-NI)
Hardware-accelerated
Transcoding
Yes
System Memory 8 GB SODIMM DDR4 (1 x 8 GB)
Since 2024/01
Maximum Memory 16 GB (2 x 8GB)
Memory Slot 2 x SODIMM DDR4
Flash Memory 4GB (Dual boot OS protection)
Drive Bay 4 x 3.5-inch SATA 6Gb/s
The system is shipped without HDD. For the HDD compatibility list, please visit https://www.qnap.com/compatibility/
Drive Compatibility 3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable Yes (Not supported M.2 SSD)
M.2 Slot 2 x M.2 2280 PCIe Gen 3 x1
If a heatsink is to be installed, it is recommended that the top heatsink dimensions
be less than 68 x 20 x 10 mm (L x W x H)
SSD Cache Acceleration
Support
Yes
2.5 Gigabit Ethernet Port
(2.5G/1G/100M)
2 (2.5G/1G/100M/10M)
5 Gigabit Ethernet Port
(5G/2.5G/1G/100M)
Optional via PCIe expansion card
10 Gigabit Ethernet Port Optional via PCIe expansion card
Wake on LAN (WOL) Yes
Jumbo Frame Yes
PCIe Slot 1
Slot 1: PCIe Gen 3 x2
Card dimensions for PCIe slot：190 x 68.9x 18.76 mm / 7.48 x 2.71 x 0.74 inches. USB 2.0 port 2
USB 3.2 Gen 2 (10Gbps)
Port
2 x Type-A
IR Sensor Yes (Optional QNAP RM-IR004 remote control)
HDMI™ Output 1, HDMI™ 2.1 (up to 4096 x 2160 @ 60Hz)
Form Factor Tower
LED Indicators Power/Status, LAN, USB, HDD1-4
Buttons Power, USB copy, Reset
Dimensions (HxWxD) 165 × 170 × 226.5 mm
Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches
high depending on model)
Weight (Net) 2.26 kg
Weight (Gross) 3.59 kg
Operating Temperature 0 - 40 °C (32°F - 104°F)
Storage Temperature -20 - 70°C (-4°F - 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27ËšC (80.6ËšF)
Power Supply Unit 90W adapter, 100-240V
Power Consumption: Disk
Standby Mode
21.618 W
Power Consumption:
Operating Mode, Typical
40.536 W
Tested with drives fully populated.
Fan 1 x 120mm, 12VDC
System Warning Buzzer
Kensington Security Slot Yes
Standard Warranty 3
Max. Number of
Concurrent Connections
(CIFS) - with Max. Memory
1500
